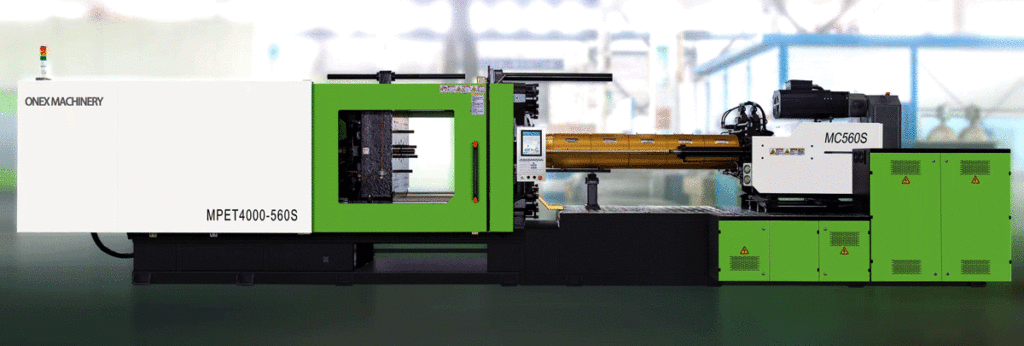

Injection Molding Machines for PET
-Electric Plasticizing
1. Introduction
PET is a widely used thermoplastic in the packaging industry, especially for products like preforms, bottle caps, and containers. However, due to its high melting point, moisture sensitivity, and fast crystallization behavior, PET cannot be processed using standard injection molding machines.
Our PET-specialized machines are purpose-built to handle these challenges, ensuring high-quality, crystal-clear output and efficient cycle times.
Key Advantages of Our PET Injection Molding Machines
-Electric Plasticizing
* PET-Optimized Screw Design
Special L/D ratio and geometry to handle PET’s unique melting behavior.

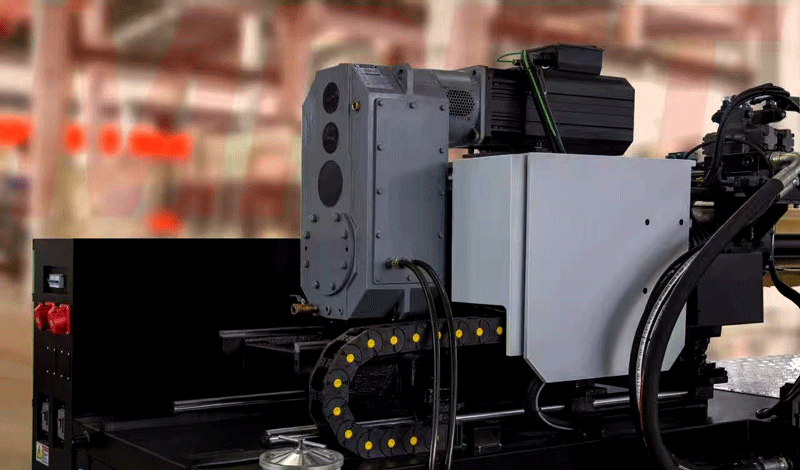

* Electric Plasticizing
Enables synchronized operation for shorter cycle times.
Consumes over 20% less energy.
3. Main Machine Models Specification
| Model | Clamping Force | Shot Weight (PET) | Screw L/D Ratio | Application |
|---|---|---|---|---|
| PET-160T | 160 Tons | 577 g | 24:1 | |
| PET-200T | 200 Tons | 831 – 1385 g | 24:1 | |
| PET-270T | 270 Tons | 1385 – 1590 g | 24:1 | |
| PET-350T | 350 Tons | 2030 – 3052 g | 24:1 | |
| PET-450T | 450 Tons | 2722 – 4004 g | 24:1 | |
| PET-500T | 500 Tons | 3613 – 8026 g | 24:1 | |
| PET-560T | 560 Tons | 3613 – 8026 g | 24:1 |
4. Turnkey Support for PET Bottle Production
We don’t just offer machines—we provide complete PET production solutions:
- Preform molds
- Dehumidifying and drying systems
- Chillers and temperature controllers
- Integrated hot runner systems
- Blow molding interface support
Whether you’re starting from scratch or upgrading existing capacity, our turnkey approach ensures fast startup and stable output.
5. Related Videos & Case Studies
PET Injection Molding Machine – 560 ton,
96 cavities, 12.5g each, with 15 second per cycle time
PET Injection Molding Machine – 390 ton,
7.38 second per cycle time with stable time and control
6. FAQ Section
Q1: How is a PET injection molding machine different from a standard one?
A: PET machines use a specialized screw, have higher plasticizing capacity, and require integrated drying and heating systems.
Q2: What screw L/D ratio is best for PET?
A: Typically 24:1 to 26:1, depending on the shot size and product thickness.
Q3: Do I need a special drying system for PET?
A: Yes. PET requires drying at ~160°C for 4–6 hours to remove moisture before molding.
