Cable Tie Injection Molding Machines
10+ Years Story and Innovation Behind
– Bill Huang on July 1st,2025
In the world of plastic manufacturing, few products are as ubiquitous yet specialized as nylon cable ties.
These simple yet essential items require precision engineering to produce efficiently and at high quality.
Today, I’m excited to share a deep dive into cable tie injection molding machines, drawing from my personal experience since 2010.
If you’re in the industry or considering entering it, this post is for you.
I’ve also recorded a detailed video on this topic — watch it right side for a visual walkthrough.
If you belong to any of the following groups, this video is a must-watch:
–cable tie producers,
– decision-makers for equipment selection,
-or anyone interested in China’s specialized and innovative manufacturing stories.
The 25-minute video provides a more detailed and comprehensive overview with additional information.
Don’t miss the hands-on experience and technical insights shared in the video below.
Introduction to Cable Tie Injection Molding Machines
Cable ties, often made from Nylon PA66 or PA6, are lightweight, slim, and require specific handling due to nylon’s properties.
Nylon loves moisture – it absorbs it from the air – but when heated in the barrel at around 260°C, that moisture evaporates, demanding an optimized injection unit.
However, that’s just the tip of the iceberg.
The real challenges lie in high pressure, high speed, and temperature control to fill long, thin cavities without defects.
Our journey began in 2010 with R&D focused on these unique demands.
Over a decade later, I can confidently say that fewer than 10 people in China can tell the full story of this niche.
As someone who’s been hands-on from the start, I’ll explain it in simple terms (and even in English or Spanish if needed!).
Patience is key – this is worth your time.
Key Characteristics of Cable Tie Production
To understand the machine, we must analyze the material and process:
- Material Challenges: PA66 (or cheaper PA6) is hygroscopic.
It absorbs moisture, which turns to steam at high temperatures, potentially disrupting the injection unit. Optimization here is crucial but achievable.
- High Pressure Needs: Cable ties are long and slim, so molten plastic loses heat as it flows through cavities, building resistance.
High injection pressure is essential to fully fill the mold without gaps or flash.
- High Speed Requirements: This includes fast plasticization and injection to maintain efficiency.
Small shot weights are needed since cable ties are light, but combined with high clamping force to prevent mold blowout.
Our R&D direction: Machines with small injection units but massive clamping force.
Our first model in 2010 was a 260T machine with a 200T injection unit.
The market was chaotic back then—mold makers pushed for more cavities to boost output, challenging our designs.
We faced broken platens and columns, often fixing them in the mi-night.
It was tough, but by 2012, we finalized the K288F model, followed by the 358 in 2013.
These red machines became legends in China’s cable tie industry, symbolizing luck and fortune for factory owners.
We expanded the lineup: 428T, 500T, 630T, and 850T models.
The last one is famous for producing 920mm ties with 16 cavities—huge demand in the US market.
A Real-World Case: Why Specialized Machines Matter
To illustrate, let’s look at a case from an exhibition. I saw a competitor using a full-electric injection molding machine for cable ties.
It sounded impressive, but the results? Not so much.
- Setup: 350T machine, 52 – cavity mold for 4.8 x 200mm ties, cycle time around 14 seconds—seemingly fine.
- Quality Check: Comparing their green ties to our black ones revealed flash.
Flash means insufficient clamping force; the mold isn’t held tightly, allowing plastic to escape. Even with potential adjustments, this expensive full-electric machine couldn’t match a specialized one.
Conclusion: General machines aren’t suited for cable ties: they lead to defects, higher costs, and lost competitiveness.
related post: Solutions to Flash Issues in Cable Tie Production
Same video as mentioned aboved ( begin at 06:46 of the aboved video)
The Competitive Landscape in China
China’s market is massive but cutthroat.
If cable ties sell for 10 per units, someone will undercut at 9.9 and dominate. Manufacturers chase lower costs through higher output, pushing machine development into a cost race.
Why choose us?
# Big Brands Ignore Niches:
Cable ties aren’t a high-volume product like universal plastics. Big companies focus on versatile machines for broad markets.
Developing a full series (200T to 1000T) with optimized toggles and units isn’t economical for them – they’d need extra inventory, engineers, and R&D without big returns.
Example: During COVID-19, big firms rushed into disposable container machines, but post-pandemic, demand vanished. One tried pivoting to cable ties but failed without proper toggle optimization.
# Continuous R&D is Key:
for example Materials evolve – PA66 prices spiked in 2014-2015, shifting to PA6. We adapt quickly with a dedicated team tracking market changes.
# Non-Stability of other Small / Medium factories:
Many falter due to market shifts, failed investments, or internal issues.
We faced this in 2014 when our parent company, Grantway, went bankrupt. We rebuilt with four founders (including me), retaining our market, tech, and manufacturing. It was hard, but we succeeded, giving workers options to stay or go.
Output Potential: A Practical Example
With our machines, output is massive. Take the 358T model as one example:
- For 2.5x100mm ties: 140 cavities, 12-second cycle.
- Daily: 24 hours × (3600/12 cycles/hour) × 140 pieces = 840,000 ties (8,400 bags of 100).
One real case: In one developing country focused on agriculture, a client bought four 358T units and supplied the entire nation’s cable tie needs. That’s the power of specialization
Looking to 2025: Current Trends and Our Innovations
Machines are getting bigger— from 470T two years ago to 700T beginners in 2025.
But this is one – dimensional competition: bigger platens and columns for more cavities. It’s unsustainable.

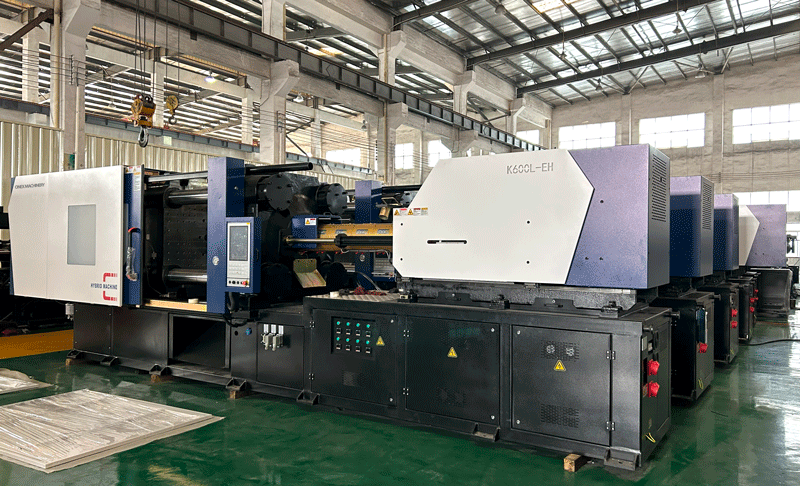

What sets us apart? Our new hybrid injection molding machine:
- Clamping: Traditional hydraulic.
- Injection / Plasticization: Electric for precision and efficiency.
We partnered with a top Chinese cable tie manufacturer two years ago for R&D.
After over two years in practice, we’ve supplied 100+ units with their approval.
Stay tuned for a dedicated video on this model!
